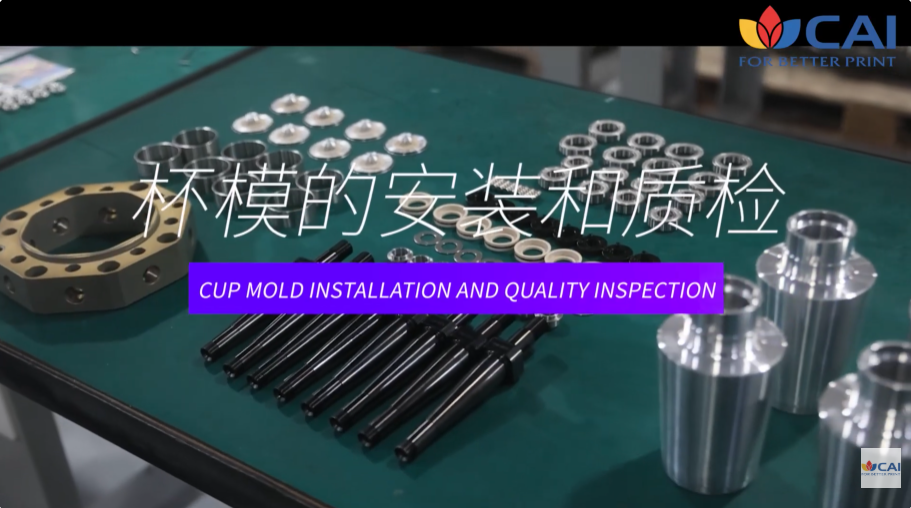

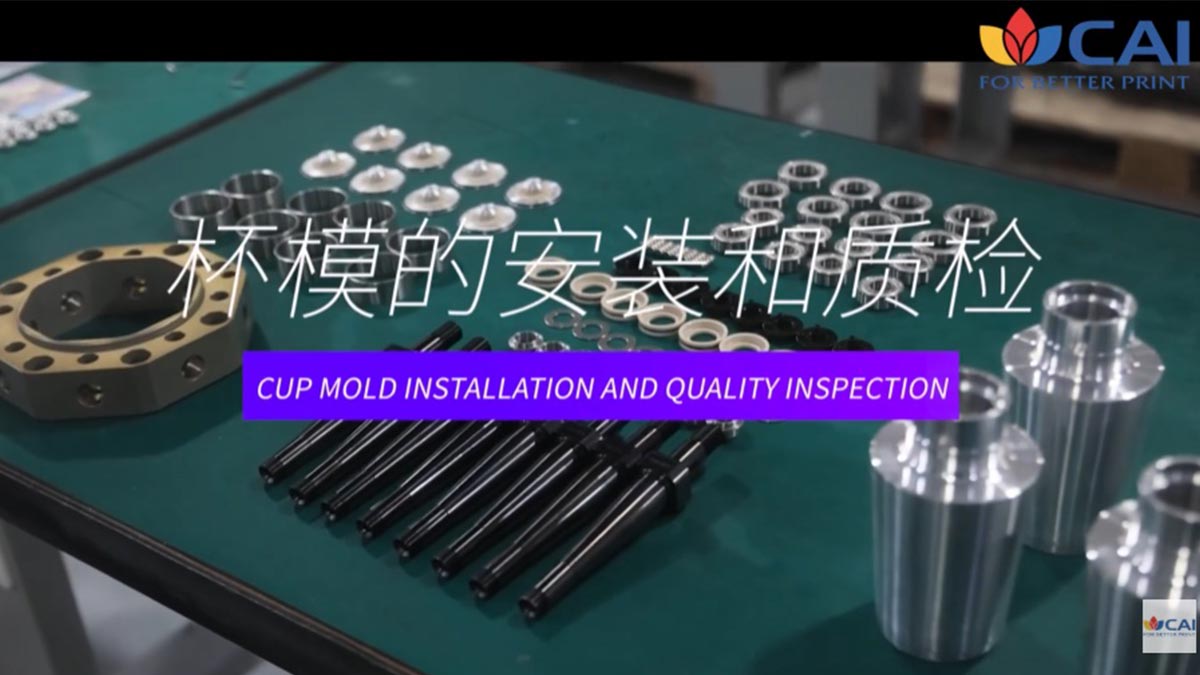

CAI Cup Printer Mandrel Installation and Quality Inspection: A Complete Guide to Cup Mold Installation and Inspection

In modern packaging manufacturing, the performance of a printer plays a critical role in determining product quality and production efficiency. Among all key components, the process of cup mold installation and inspection is essential to ensure stable operation and precise printing results.

Based on the video topic “CAI Cup Printer Mandrel Installation and Quality Inspection,” this article provides a comprehensive overview of the installation process, operational standards, and inspection methods. Drawing on the expertise of CAI Suzhou Machinery, we aim to help manufacturers optimize their production workflow.

Why Cup Mold Installation and Inspection Matters

In high-speed cup printers, the cup mold is responsible for positioning and supporting the product during the printing process. Improper installation may lead to:

Printing misalignment
Blurred or offset graphics
Product deformation
Machine instability

Therefore, standardized cup mold installation and inspection is fundamental to achieving consistent and high-quality output.

Cup Mold Installation Steps (Standard Procedure)

According to the operational standards of CAI Suzhou Machinery, the complete cup mold installation steps include:

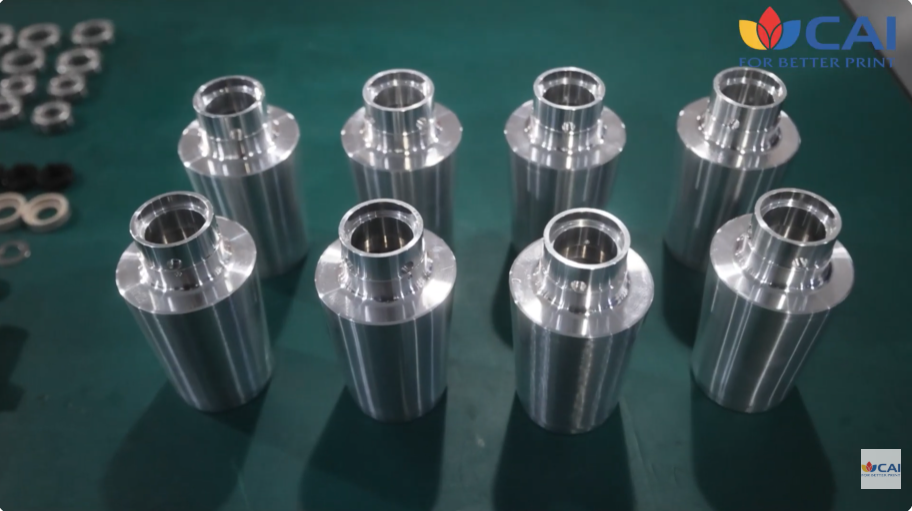

1. Pre-installation Check

Ensure the cup mold matches the mandrel specifications
Clean all contact surfaces
Inspect for damage or wear

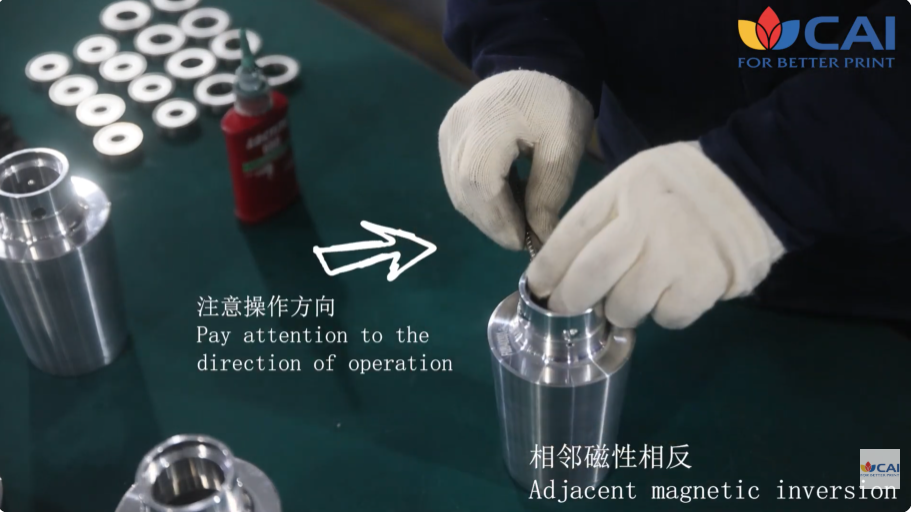

2. Positioning and Mounting

Align the cup mold with the mandrel structure
Insert smoothly without tilting
Ensure proper seating

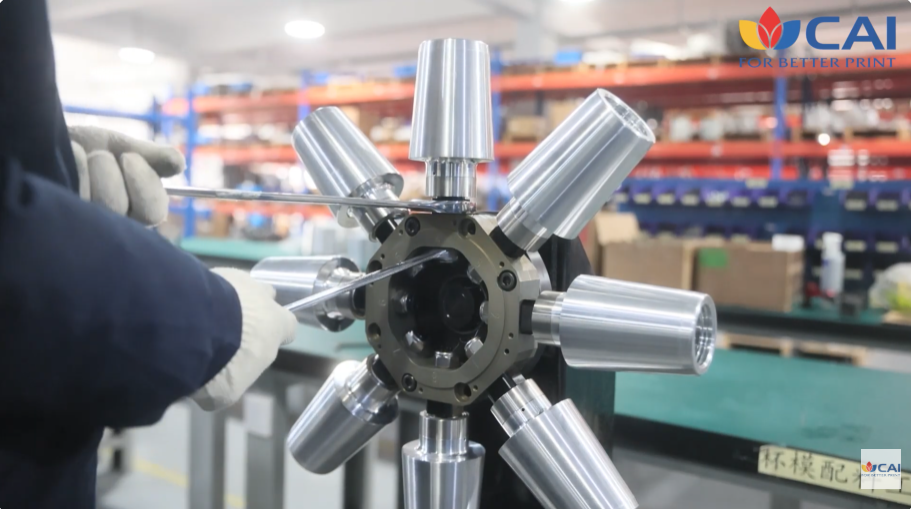

3. Fixing and Securing

Tighten using standard tools
Ensure balanced force distribution
Prevent looseness or displacement

4. Test Run

Run the printer at low speed
Observe rotation stability
Check for vibration or abnormal noise

These cup mold installation steps form the foundation for stable printer performance.

Key Points for Correct Cup Mold Installation Method

Beyond basic steps, mastering the correct cup mold installation method is crucial:

Maintain precise concentric alignment
Apply appropriate tightening force
Verify performance through dynamic testing
Use print accuracy as the final benchmark

Following these principles helps reduce downtime and improve production efficiency.

Cup Mold Installation Precautions

During on-site operations, the following cup mold installation precautions should be strictly followed:

Avoid installing without proper cleaning
Prevent uneven force during installation
Do not skip test runs
Ensure all components are securely fixed

These precautions help minimize errors and extend equipment lifespan.

Cup Mold Handling and Replacement Standards

Proper cup mold handling standards are essential for both safety and efficiency:

Removal Process

Stop and power off the printer
Loosen components in sequence
Remove the mold carefully

Installation Process

Use dedicated tools
Follow standardized procedures
Avoid improper handling

Adhering to these cup mold handling standards ensures safe operation and protects printer components.

Cup Mold Inspection for Quality Assurance

After installation, a thorough inspection is required as part of the cup mold installation and inspection process:

Visual Inspection: No scratches or contamination
Operational Check: No vibration or abnormal noise

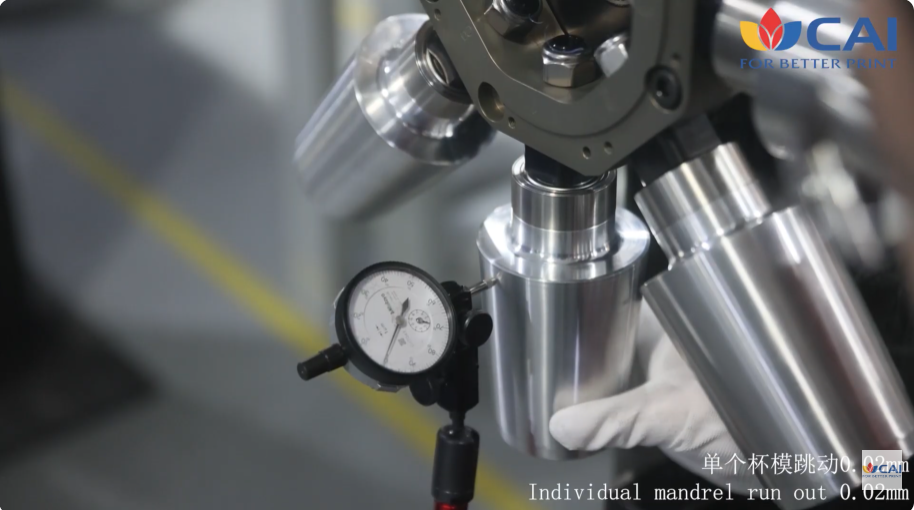

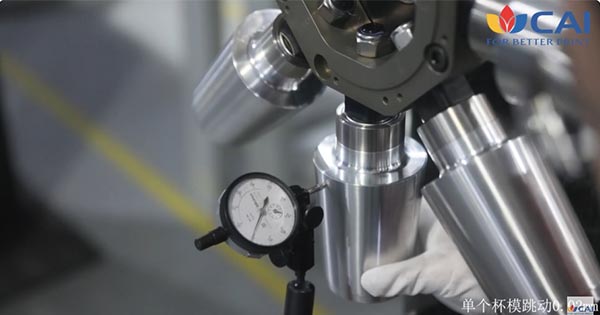

Position Accuracy: Precise printing alignment
Final Product Check: Clear and consistent print quality

A complete inspection process significantly improves product consistency and yield rate.

Conclusion

From installation to inspection, every detail impacts the final printing result. With standardized processes, CAI transforms cup mold installation and inspection into a reliable and repeatable workflow for manufacturers.

If you are looking to improve the performance of your printer or optimize your production process, CAI provides professional solutions tailored to real manufacturing needs.
