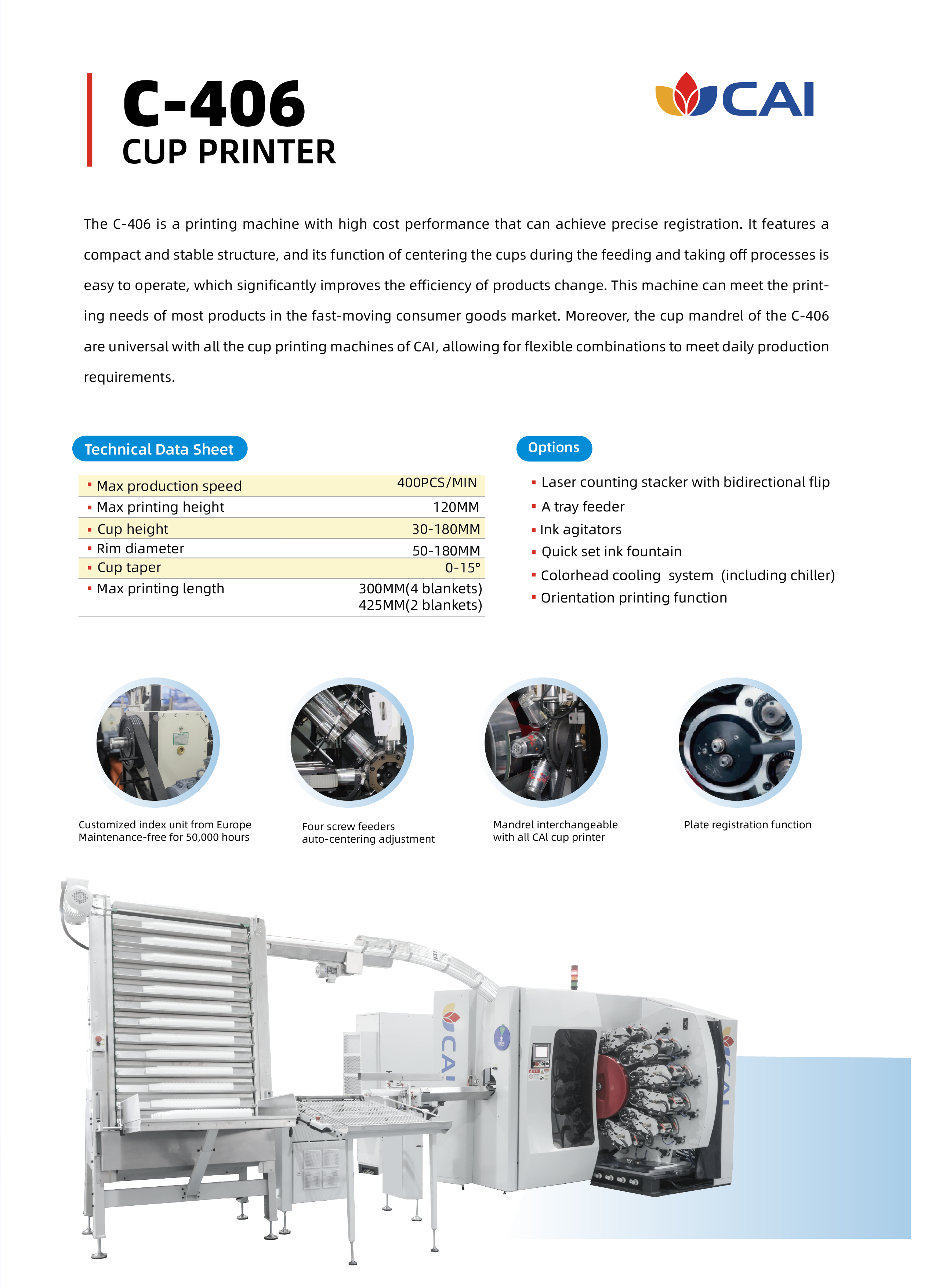

Cup Printer-C406
Technical Data Sheet
|
Max production speed |
400pcs/min |
|
Cup height |
30-180mm |
|
Rim diameter |
40-180mm |
|
Cup taper |
0-15° |
|
Max printing height |
120mm |
|
Max printing length |
340mm(4blankets) |
|
425mm(2blankets) |
|
|
Colorhead |
6 |
|
Net.Weight |
3500KG |
|
Machine height |
2400mm |
|
Machine length |
7050mm(Standard with belt tray feeder) |
|
Machine width |
2870mm |

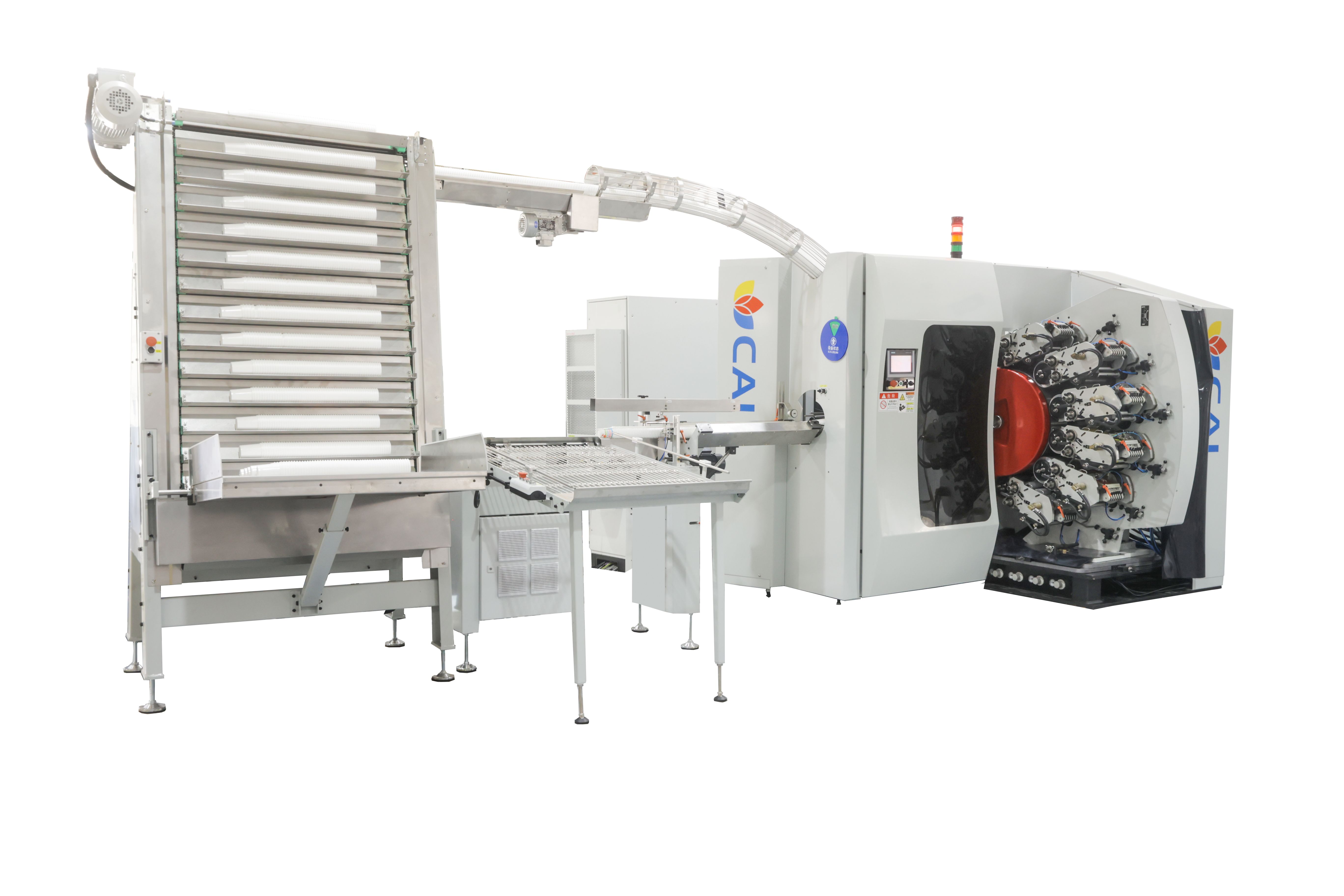

Cup Printer-C406
Fast Conversion
Infeed & outfeed automatic centering
fast conversion & labor- saving
Index Unit
Super customized index imported from Germany
Index brand: Heinz
50,000 hours free of maintenance
Colorhead Cooling System(option)
Colorhead Cooling System guarantees sharp
printing performance
Plate Cylinder
Run out ≤ 0.01mm
Measured after 24 hours constant temperature, the diameter difference of the 6 pcs plate cylinders is controlled less than 0.01mm
Mandrel
Run out ≤ 0.02mm
Keep the highest points of 8 pcs mandrel at the same level
Weight difference of 8 pcs mandrel less than 5g
Offset Cylinder
Run out ≤ 0.02mm
