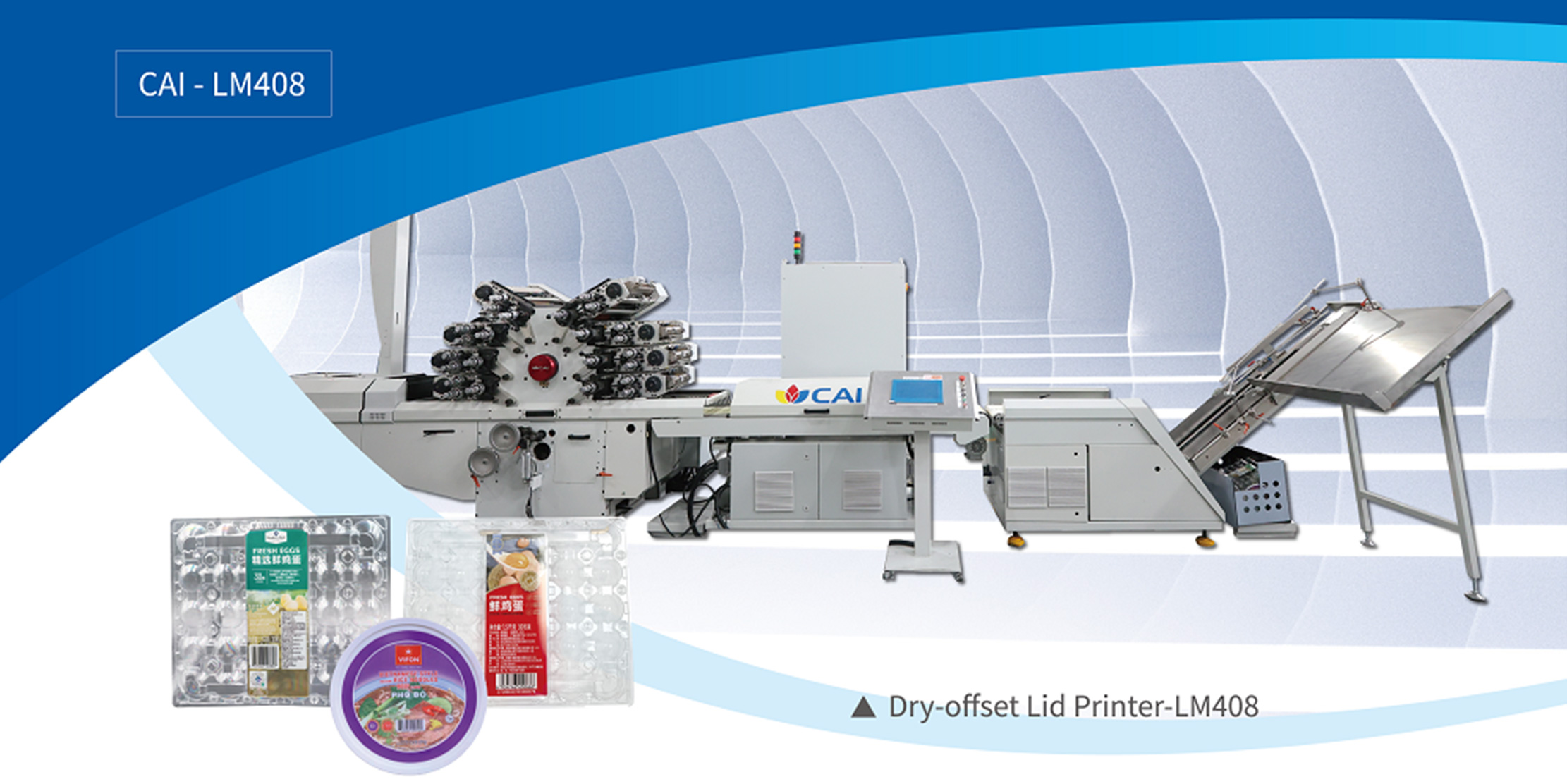

Lid Printer-LM
Technical Data Sheet
|
Max printing speed |
400pcs/min |
|
Round lid diameter |
50-325mm |
|
Round lid max printing area |
250mm |
|
Rectangularlid size |
50*50mmto300*240mm |
|
Rectangularlid max printing area |
240*240mm |
|
Max lid height |
40mm |
|
Colorhead |
8 |
|
Net. Weight |
6000KG |
|
Machine height |
2450mm |
|
Machine length |
7890mm |
|
Machine width |
2090mm |
Lid Printer-LM

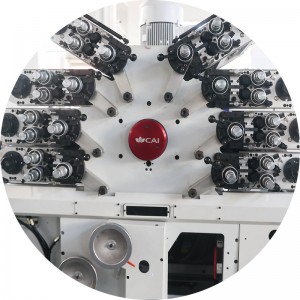

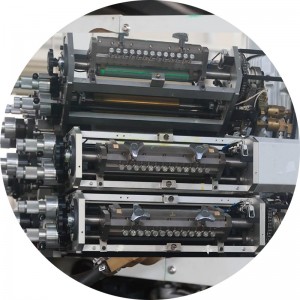

Register-accurate Plate Adjustment
Register-accurate plate adjustment achieves excellent printing results
Up to 8 colors to meet diversified printing requirements

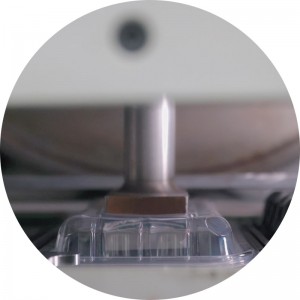

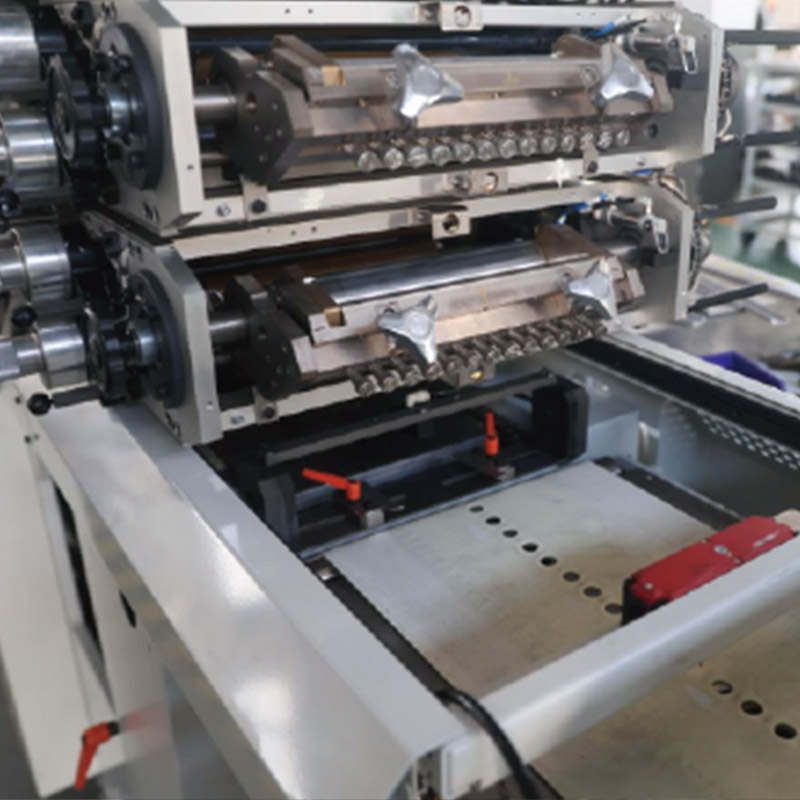

Suction Pad Index Unit
Customized index unit realizes the intermitten reciprocating lifting controlled feeding by sunction pad support in feed position

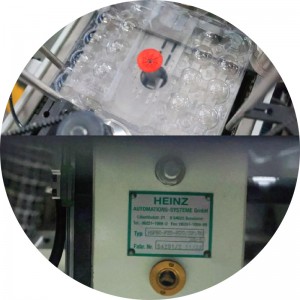

Index from Germany Heinz guarantee 50,000 hours free of maintenance

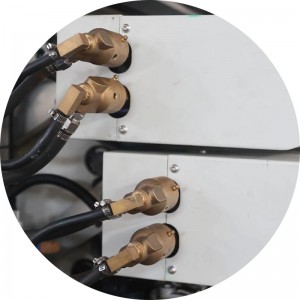

Liquid Cooling System
Constant temperature cooling system
ensures excellent printing performance

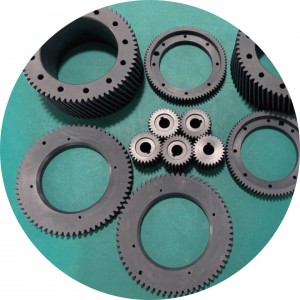

Gear(colour:gray-black)
Use imported special materials
Shock absorption and wear resistance
ensure sharp printing performance

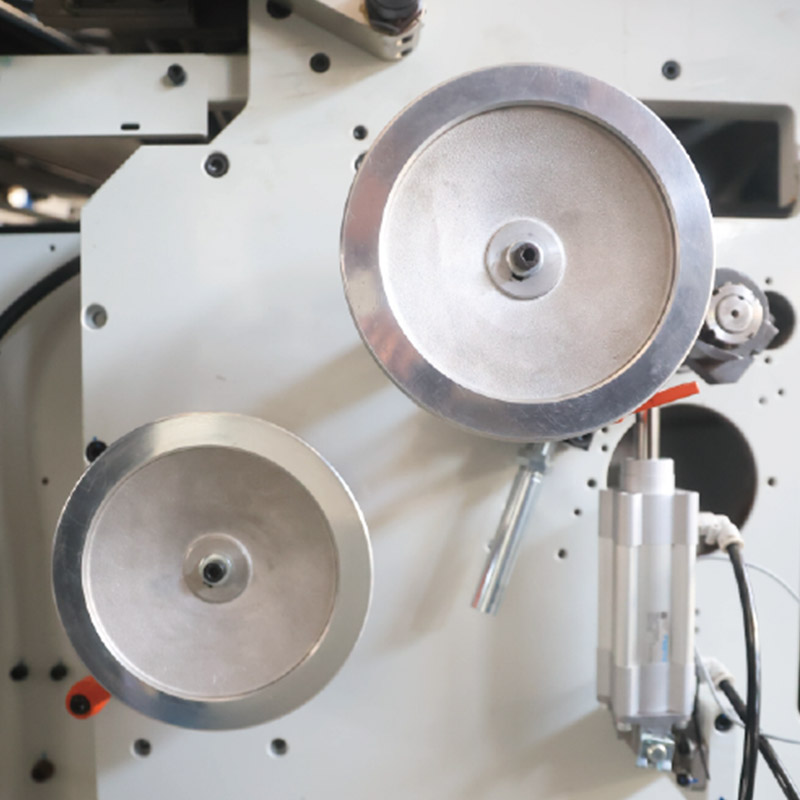

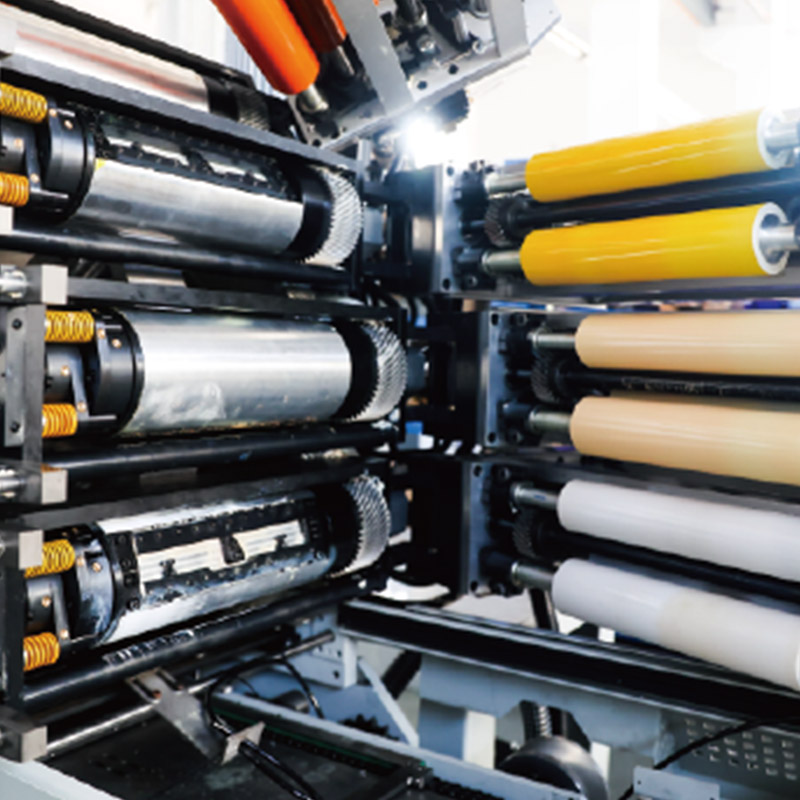

Spring Ink Fountain
Control the amount of ink via screw tighten or loosen

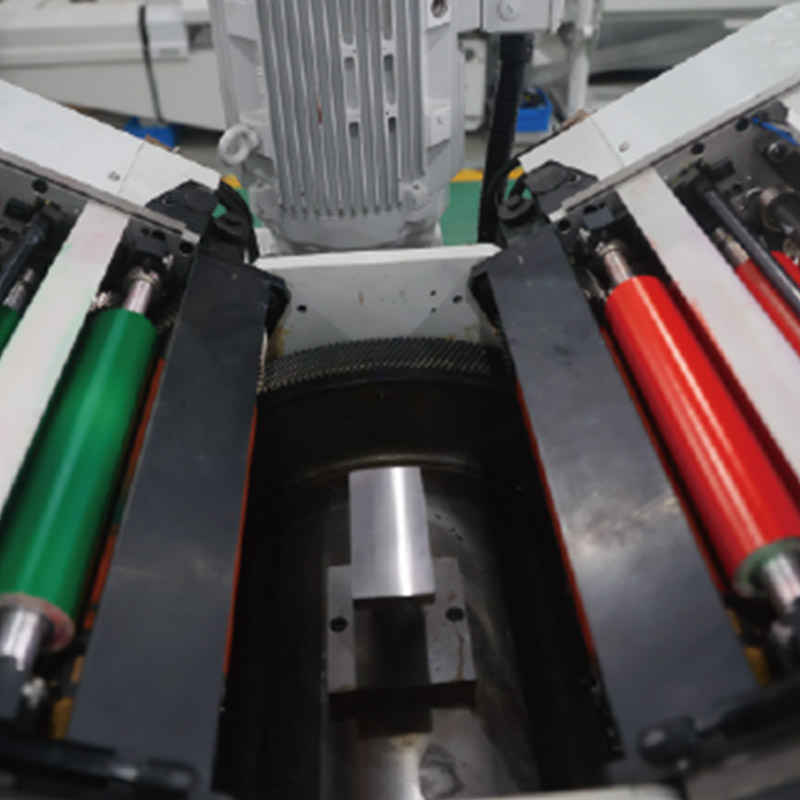

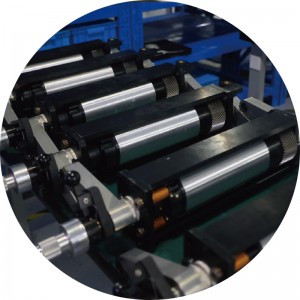

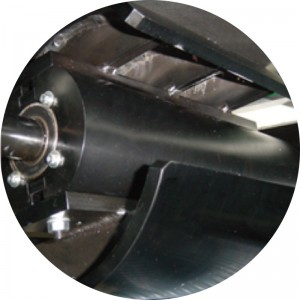

Plate Cylinder
Run out ≤ 0.01mm
Measure after 24 hours constant temperature, the diameter difference of the 8 pcs plate cylinders is controlled less than 0.01mm
Top Pressure Shoes
Run out ≤ 0.02mm
6 top pressure shoes circular run out ≤ 0.02mm
Down Standard Shoes
Run out ≤ 0.02mm
2 dwon standard shoes circular run out ≤ 0.02mm
