Round Containers

Product Detail

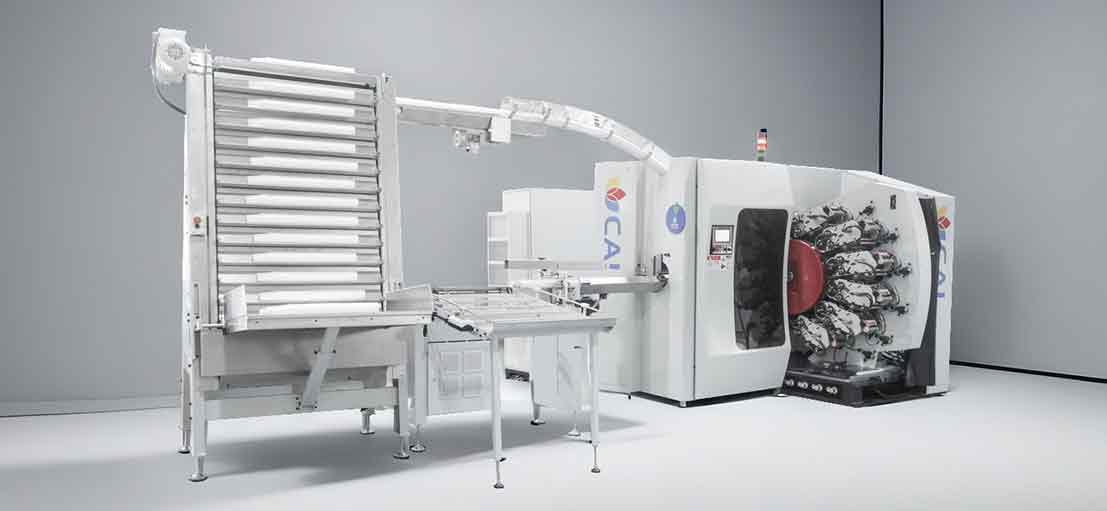

C-406

The C-406 is a printing machine with high cost performance that can achieve precise registration.It features a compact and stable structure,and its function of centering the cups during the feeding and taking off processes is easy to operate,

which significantly improves the efficiency of products change.

This machine can meet the printing needs of most products in the fast-moving consumer goods market.

Moreover, the cup mandrel of the C-406 are universal with all the cup printing machines of CAI, allowing for flexible combinations to meet daily production requirements.

Technical Data

• Max production speed	400PCS/MIN	• Max printing height	120MM
• Cup height	30-180MM	• Rim diameter	50-180MM
• Cup taper	0-15°	• Max printing length	300MM(4 blankets) 425MM(2 blankets)

Options

- Laser counting stacker with bidirectional flip
- A tray feeder
- Ink agitators
- Quick set ink fountain
- Colorhead cooling system (including chiller)
- Orientation printing function

E-506

The E-506 is a highly efficient and economical printing machine.

It boasts an extremely large printing range and can achieve a printing precision of up to 120 lines.

It features a classic double helical gear color station transmission structure,which effectively absorbs vibrations and is highly resistant to wear.

The modular design of its various functions provides numerous options to meet personalized needs.

The online UV curing effectiveness monitoring function also significantly reduces the rejection rate.

Technical Data

• Max production speed	500PCS/MIN	• Rim diameter	50-205MM
• Max printing Height	150MM	• Cup taper	0-12°
• Cup height	30-230MM	• Max printing length	368MM(4 blankets) 540MM(2 blankets) 610MM(2 blankets, magnetic plates)

Options

- Larger L-tray feeding system
- Roller semi-automatic cleaning system
- Quick set ink fountain
- Ink agitators
- Magnetic plate cylinder
- Third-roller function
- Orientation printing function

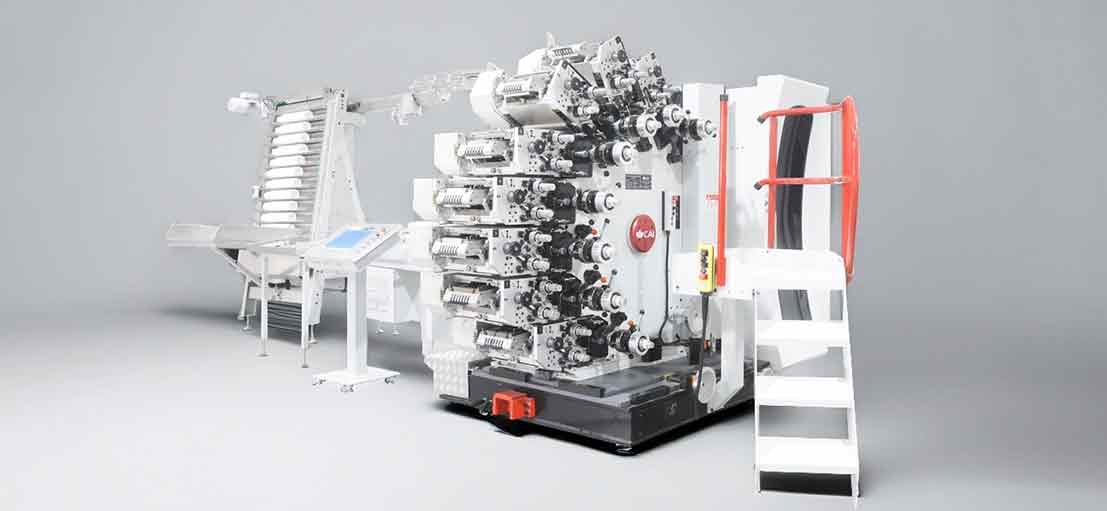

S-608

The 5-608 is a professional high-performance printing machine. It enables diverse 8-color printing with photo-grade exquisite quality.

Its flexible personalized modular configuration can meet the requirements of stable and efficient production. Moreover,

it offers the optional online visual inspection function and other features, making it a mainstay device in the intelligent production workshops of "24 - hour autonomous dark factory"

Technical Data

• Max production speed 600PCS/MIN	600PCS/MIN	•Rim diameter	50-205MM
• Max printing height	150MM	• Cup tapermax printing area	0-12°
• Cup height	30-230MM	• Max printing length	368MM(6 blankets) 540MM(3 blankets) 610MM(3 blankets, magnetic plates)

Options

- Larger L-tray feeding system
- Roller semi-automatic cleaning system
- Quick set ink fountain
- Ink agitators
- Magnetic plate cylinder
- Third-roller function
- Orientation printing function
- Vision control system (cup inside or outside)
